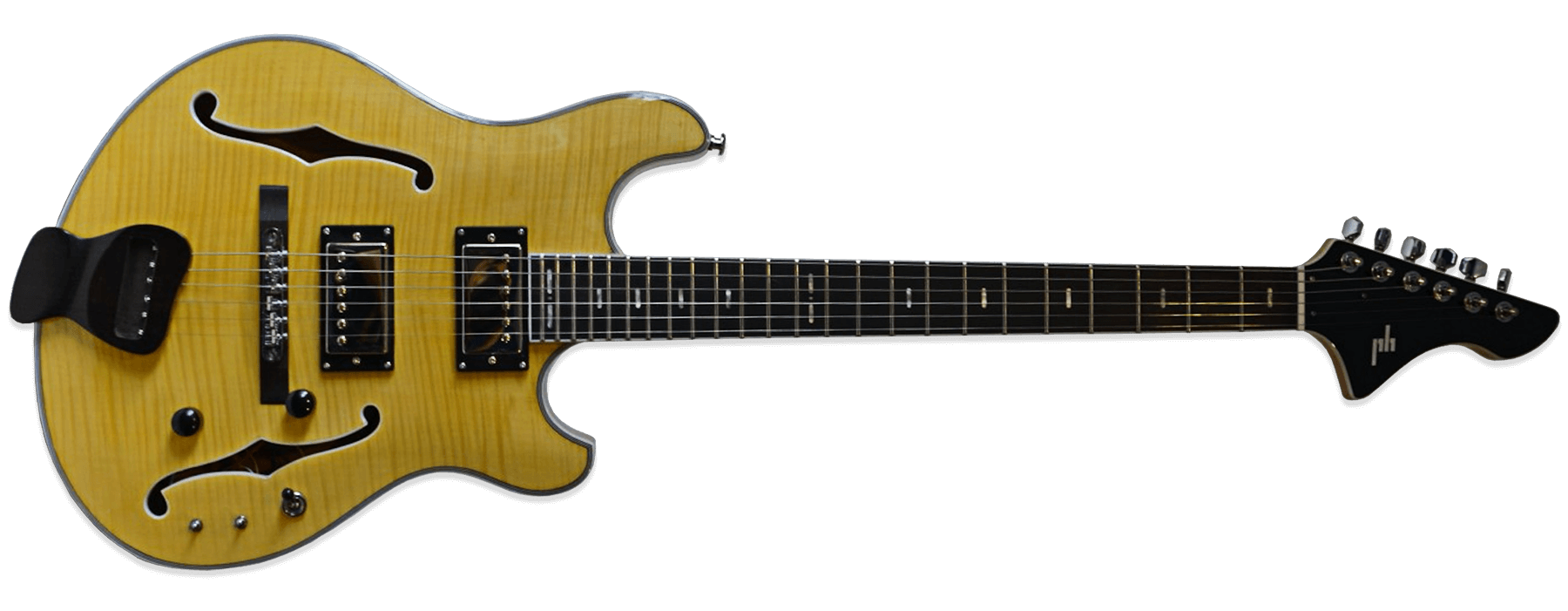

The PHRED Instruments DockStar is a custom hollowbody in the tradition of arch-top Jazz guitars. The DockStar is heavily influenced by the unique Languedoc guitar made for Trey Anastasio of the band Phish…

The PHRED DockStar has a lightweight hollow-body made of Mahogany. The top & back are Koa or Flame Maple veneer and have traditional style bound F-holes. The neck is Maple with an Ebony fretboard, scale length is 25.5″ with 24 medium jumbo frets. Pickups are 4-wire humbuckers.

PHRED Instruments are based in Los Angeles but the guitars are manufactured in Asia. The PHRED name is a combination of the bands Phish and Grateful Dead and they builds guitars inspired by rarities like Jerry Garcia’s “Tiger” and Trey Anastasio’s custom Languedoc G2, which is the primary influence on the DockStar.

For the beginning of 2016, DockStar Koa is only built to order.

logo PHRED Instruments
  • Body Style: full hollow
  • Body wood: Mahogany
  • Body top wood: Koa or Flame Maple veneer
  • Body back wood: Koa or Flame Maple veneer
  • Body binding: top, back, top side, back side
  • Body binding color: white and Black Stripe Binding
  • Neck wood: Maple
  • Fretboard wood: Ebony
  • Frets: 24 medium Jumbo frets
  • Scale length: 25 1/2″ scale
  • Nut width: 1 11/16″
  • Nut material: Bone
  • Fretboard inlays: Pearloid Custom Inlays
  • Neck binding: white with black dots
  • Neck stabilization: double-expanding truss rod
  • Headstock binding: white side binding
  • Pickup (neck): Humbucker (4-wire)
  • Pickup (bridge): Humbucker (4-wire)
  • Pickup covers: chrome
  • Toggle: Mini Toggle (Series/Split Coil)
  • Pickup Toggle: Mini Toggle (Series/Split Coil)
  • Custom Electronics: none
  • Custom Wiring: none
  • Battery: none (not required)
  • Controls: Master Volume Knob, Master Tone Knob
  • Bridge style: Rosewood Floating Bridge
  • Stop tailpiece style: Archtop ebony tailpiece
  • Pickup Toggle Switch: 3-way Pickup Toggle
  • Tuning machines: unbranded tuning machines
  • Output jacks: Mono output
  • Colors/finish: Koa or Flame Maple with natural veneer
  • Dimensions: size (inches) 40(h) x 13.5(w) x 2(d)
  • Weight: 7lbs / 3.17 kg
  • Country manufactured: China
