Jackson Misha Mansoor Juggernaut HT7

Jackson Misha Mansoor Juggernaut HB7

Jackson have collaborated closely with Periphery guitarist Misha Mansoor on the Juggernaut HT7, a brand-new seven-string model like nothing else Jackson has ever seen — or heard — before…

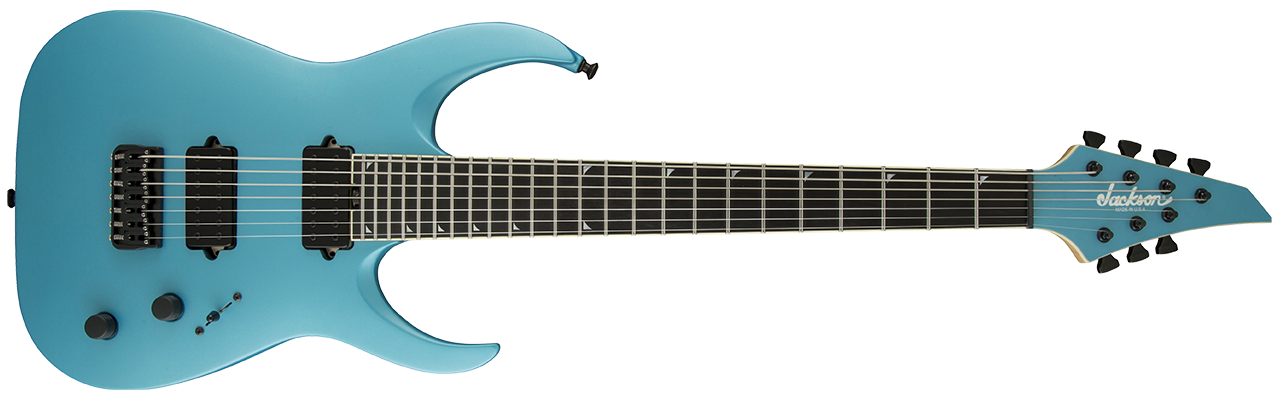

The instrument is crafted with a distinctive Jackson body shape inspired by the Dinky™, with sleekly scalloped horns, a comfortably contoured neck heel and a gorgeous quilt maple top on trans-finish models. The bolt-on quartersawn maple neck is sculpted with Mansoor’s own custom profile, and features graphite reinforcement, ivoroid binding andheel-end thumbwheel truss rod adjustment.

The 20″-radius ebony fingerboard is crafted with 24 stainless steel jumbo frets, piranha inlays, special Periphery “P” inlay at the 12th fret, and Luminlay fluorescent side dots. The guitar’s tonally versatile sound comes from Mansoor’s dual direct-mount signature Bare Knuckle “Juggernaut” humbucking pickups with brushed nickel covers and engraved “Bulb” logo, five-way switching and a push-pull (on/ off) master tone knob. Other premium features include a Jackson AT1 headstock with Hipshot open-gear locking tuners (three on one side, four on the other), Hipshot hard-tail sevenstring bridge, black anodized brushed aluminum rear cavity cover with laser-etched “Bulb” logo, black hardware and more.

logo Jackson Guitars
Jackson Misha Mansoor Juggernaut HB7
Jackson Misha Mansoor Juggernaut HB7
Jackson Misha Mansoor Juggernaut HB7
  • Body Material: Baked Basswood
  • Body Finish: Satin Urethane
  • Body Shape: Juggernaut
  • Neck Material: 1-Piece Bolt-On Quartersawn Maple with Graphite Reinforcement and Scarf Joint
  • Neck Finish: Hand-Rubbed Urethane Gel
  • Neck Shape: 3rd Fret: 0.790″, 12th Fret: 0.850″
  • Scale Length: 26.5″ (673 mm)
  • Fingerboard: Ebony
  • Fingerboard Radius: 20″ (508 mm)
  • Number of Frets: 24
  • Fret Size: Jumbo
  • String Nut: Graph Tech® NuBone™
  • Nut Width: 1.75″ (44.45 mm)
  • Position Inlays: Piranha Tooth (Small Shark Fin)
  • Headstock: Jackson® 4+3 AT-1
    • Bridge Pickup: Direct-Mount Bareknuckle Pickups, Juggernaut 7-String Humbucker, Brushed Nickel Covers with Engraved “BULB” Logo with Black Hex Pole Pieces
    • Neck Pickup: Direct-Mount Bareknuckle Pickups, Juggernaut 7-String Humbucker, Brushed Nickel Covers with Engraved “BULB” Logo with Black Hex Pole Pieces
    • Controls: Master Volume, Master Tone (with Push/Pull Coil Select Feature)
    • Pickup Switching: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Single Coils, Position 3. Both Full Humbucking Pickups, Position 4. Outer Neck Single Coil, Position 5. Full Neck Pickup
    • Pickup Configuration: HH
  • Bridge: Hipshot 7 – Fixed .175
  • Hardware Finish: Black
  • Tuning Machines: Hipshot Open-Gear Locking
  • Pickguard: None
  • Strings: D’Addario® EXL 117, Gauges:.011-.056 + .064
  • Pickups brushed nickel covers engraved “Bulb” logo
