EVH Striped Series Red Black White

New for 2013 – the EVH Striped Series guitar. Featuring a basswood Stratocaster-style body decked out in Eddie Van Halen’s famed striped graphics. Based on Van Halen’s legendary “Frankenstein” Stratocaster, the EVH Striped Series is a stripped-down speed machine with a single humbucker…

The EVH Striped Series features a graphite-reinforced maple neck with thumbwheel truss rod adjustment, compound-radius maple fingerboard (12”-16”) with 22 jumbo frets and black dot inlays, and a single ferocious direct-mount Wolfgang humbucking pickup. Other premium features include a single white volume control knob (labeled “tone”), bar string retainer and Floyd Rose locking nut, EVH-branded Floyd Rose locking tremolo with EVH D-Tuna, EVH die-cast tuners, chrome hardware, vintage-style strap buttons and EVH neck plate. Available Spring 2013.

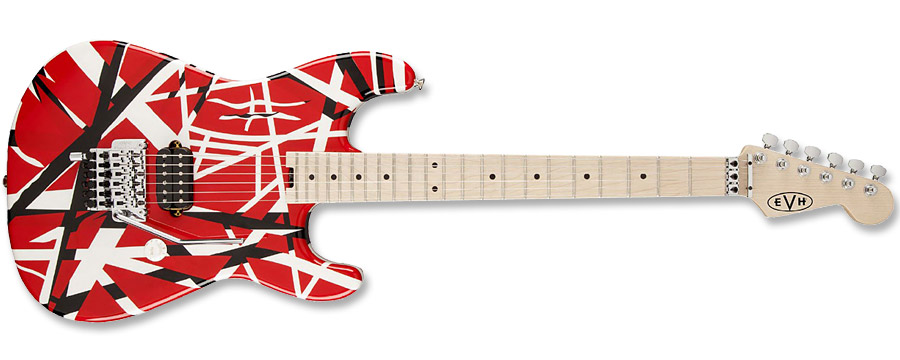

EVH Striped Series Red Black White

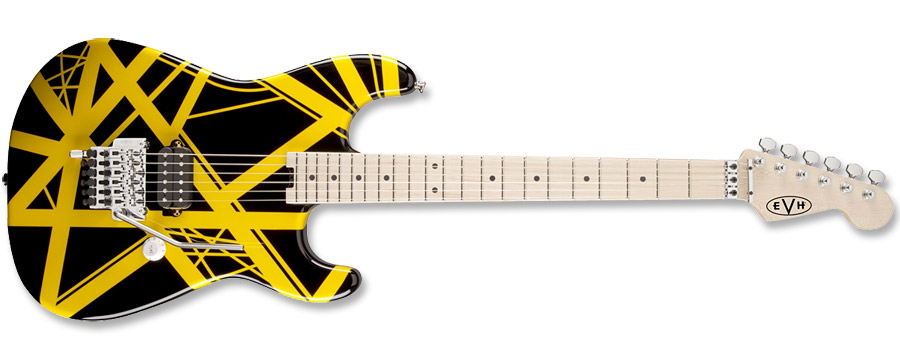

EVH Striped Series Black Yellow

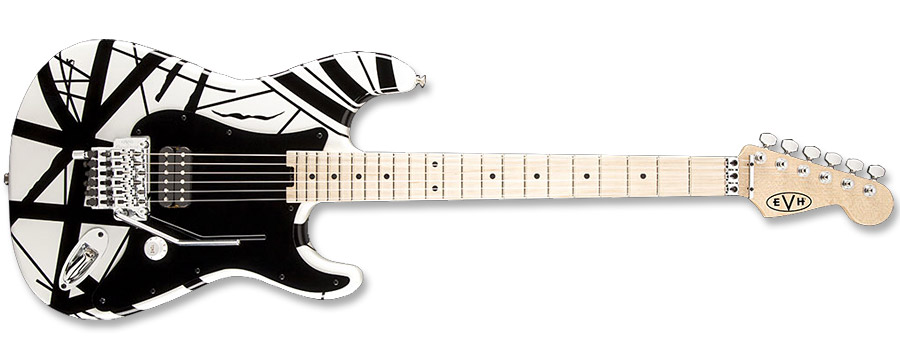

EVH Striped Series White Black

The EVH Striped Series guitars feature basswood Stratocaster-style bodies decked out in Eddie Van Halen’s famed striped graphics.

EVH Striped Series features:

  • Body: Basswood
  • Frets: 22 Jumbo
  • Position Inlays: black dot
  • Fretboard Radius: 12″ to 16″ Compound Radius (304.8 mm to 406.4 mm)
  • Fretboard: Maple
  • Neck Material: Maple with Graphite Reinforcement
  • Neck Finish: Hand-Rubbed Oil
  • Nut Width: 1.6875″ (42.8 mm)
  • Scale Length: 25.5″ (648 mm)
  • Headstock: Standard Stratocaster
  • Neck Plate: EVH-Branded
  • Pickup Configuration: H
  • Bridge Pickup: Direct Mount Wolfgang Humbucking
  • Controls: Master Volume
  • Hardware: Chrome
  • Bridge: EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
  • String Nut: Floyd Rose Locking
  • Colours: red with black stripes, black with yellow stripes and white with black stripes

Could this be 2013 Guitar of the Year? You decide…

It’s free to vote and no registration required
